Why commercial HVAC is your building's biggest controllable cost

Heating, ventilation and air conditioning together make up the single largest slice of energy use in most UK commercial buildings, commonly in the region of 40 to 60 per cent of the electricity bill. That is the fact the whole site turns on: lighting and small power get the attention, but HVAC is where the money, the carbon and the compliance risk actually sit. Get it right and a building runs efficiently, meets its statutory duties and keeps tenants and staff comfortable. Get it wrong and you face climbing running costs, refrigerant-law exposure and unplanned plant failures that take a building off comfort at the worst possible moment.

The load is not flat, and that is the single most important design insight in the niche. Cooling demand peaks with solar gain and occupancy, typically mid-afternoon in summer, and runs year-round in IT and process spaces such as data suites and server rooms. Heating demand peaks on cold mornings. Ventilation runs whenever the building is occupied. Crucially, a building spends most of its operating hours well below its peak, which means part-load efficiency and controls matter far more than the headline plant capacity. A system chosen only on its rated output, and run with poor controls, wastes energy in exactly the hours the building uses most.

It gets more subtle still. Simultaneous heating and cooling is common: an office can need cooling on its sunny south face while the north face needs heat. That is precisely why heat-recovery three-pipe VRF, which moves heat from the zones being cooled into the zones being heated, is so efficient, and why a like-for-like box swap misses the efficiency prize entirely. Ventilation carries its own penalty: every cubic metre of fresh air brought in for indoor air quality has a heating or cooling cost attached, unless that heat is recovered. Mechanical ventilation with heat recovery can recover up to around 90 per cent of the exhaust heat, and demand-controlled ventilation supplies fresh air only when and where occupancy calls for it. That is the direct link between indoor air quality and energy that the whole strategy hangs on.

This is why the sensible facilities manager treats HVAC as a joined-up strategy rather than a series of emergency call-outs. The sequence is: first make cooling and ventilation efficient with low-GWP VRF and VRV air conditioning, efficient commercial chillers, EC-fan air handling units, heat recovery and demand control on ventilation and MVHR; then electrify heat with commercial heat pumps where the running-cost maths works; then add solar to power the electrified plant; then tie it together with ventilation and indoor air quality. And underpinning all of it, a planned maintenance and PPM contract keeps the plant efficient, compliant and running. Everything below sets out how each of those decisions is actually made.

---

VRF or chillers — when each system wins

The first big decision on most commercial buildings is VRF versus a central chiller, and the honest answer is that it depends on the cooling load and the building layout, which is why we size it on your actual heat gains rather than a rule of thumb.

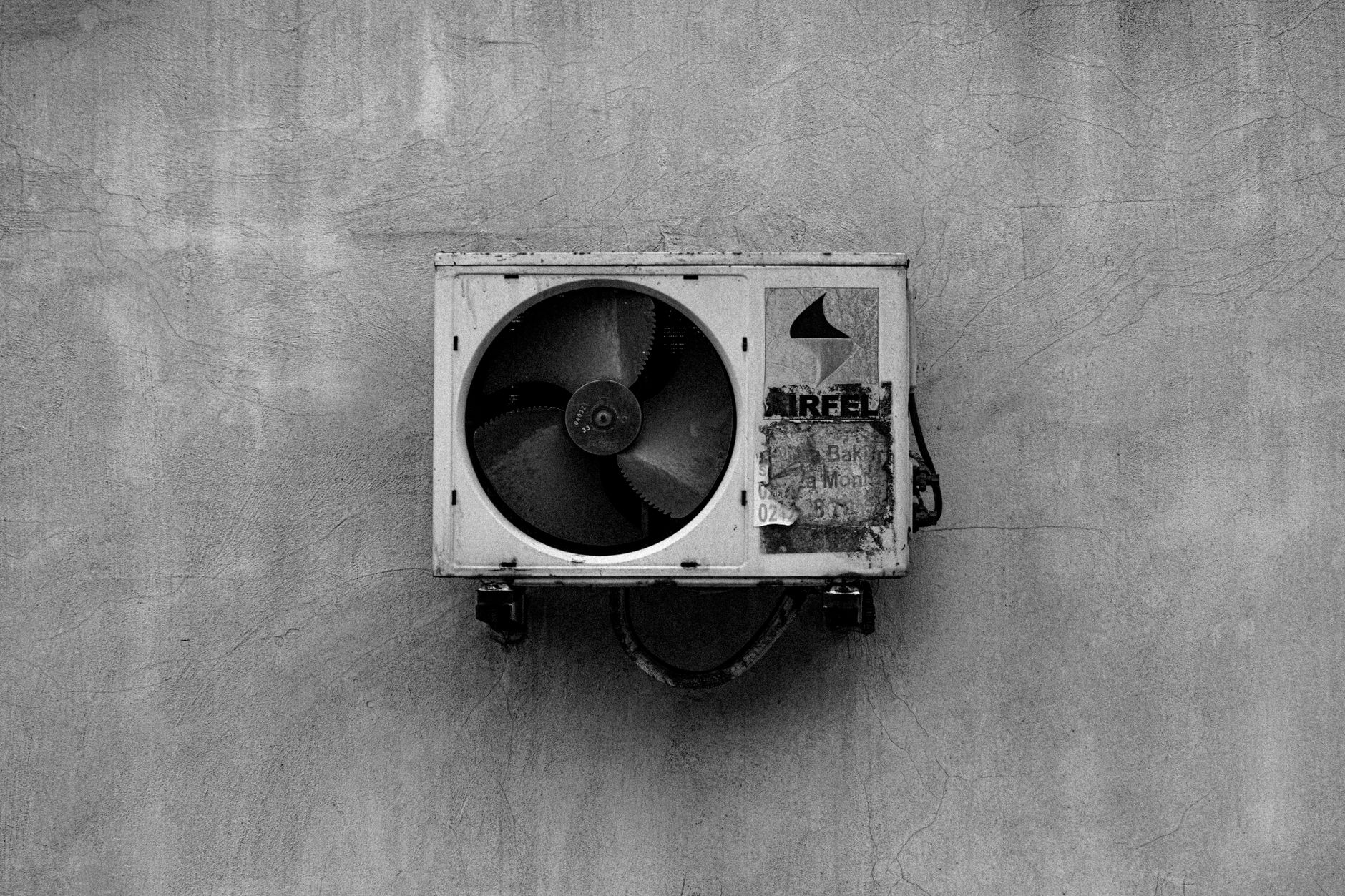

VRF, or variable refrigerant flow (Daikin's version is trademarked VRV), uses one or more outdoor condensers to modulate refrigerant around many indoor fan-coil units, each zone controlled independently. It is the workhorse of offices, retail and hotels, quieter and more efficient than banks of single splits, and it typically suits cooling loads up to roughly 150 to 200 kW. Its standout efficiency feature is heat-recovery VRF, which moves heat from cooling zones to heating zones simultaneously, and it modulates well at part-load, which is where a building spends most of its hours.

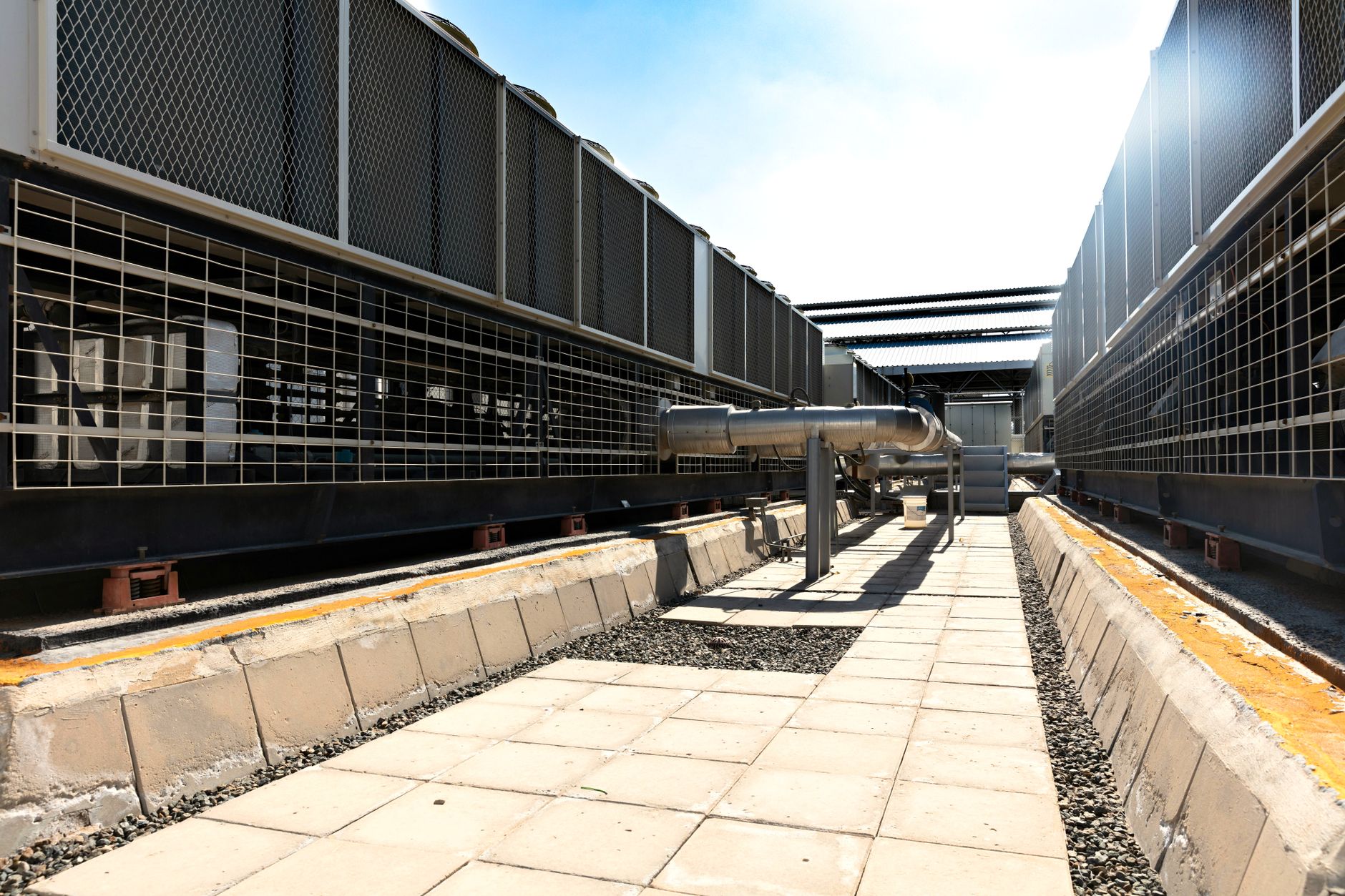

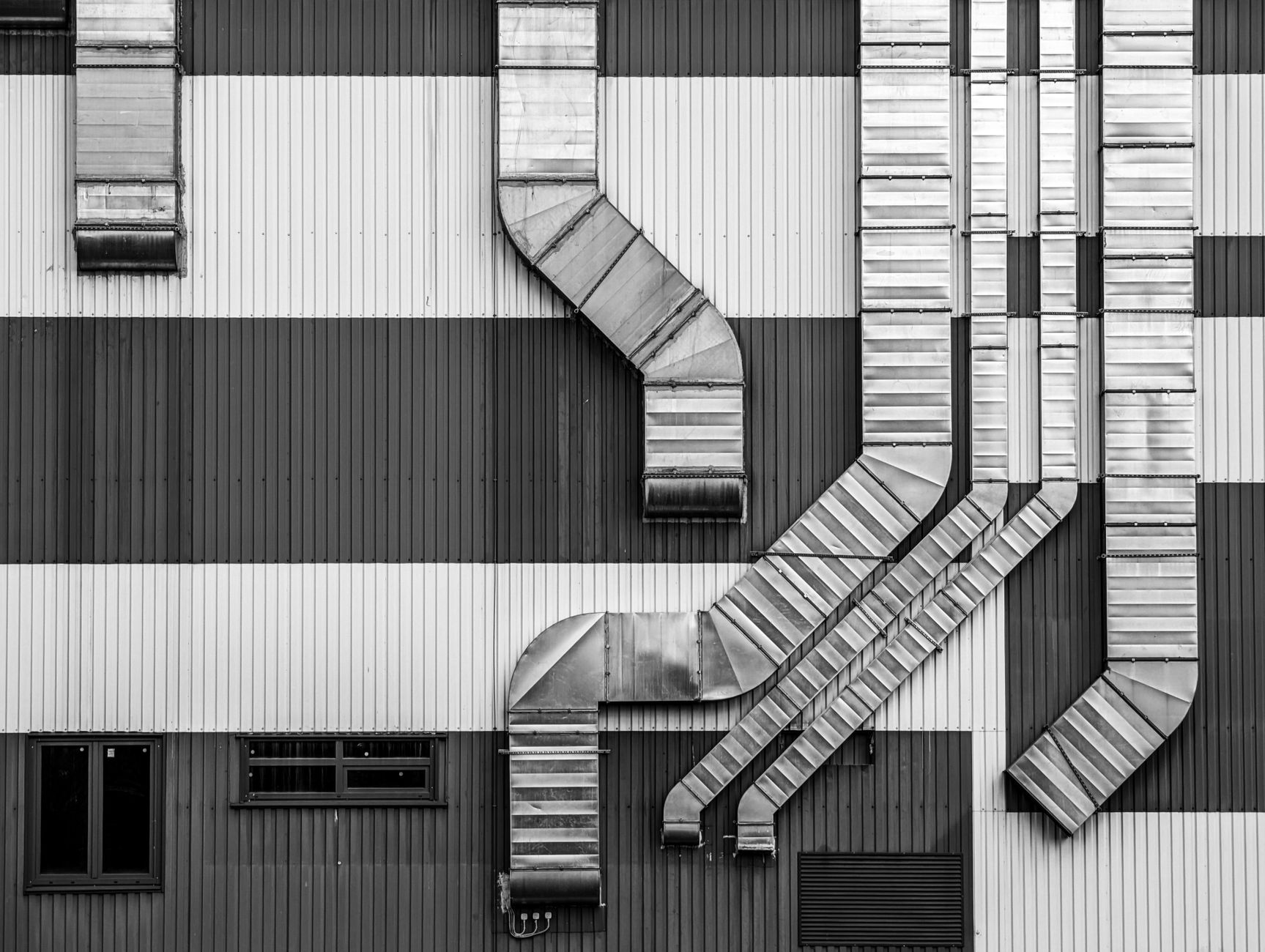

A chiller earns its place above that threshold, or where long pipe runs, very high loads or a mix of comfort and process cooling make chilled water the better distribution medium. Chillers produce chilled water that is pumped to air handling units and fan-coils, and they scale far beyond VRF, from around 100 kW up to 2 MW and beyond, for large offices, hospitals, hotels, data suites and manufacturing. Free-cooling and turndown controls slash chiller running cost on part-load, and water-cooled chillers with cooling towers bring their own Legionella and ACOP L8 water-hygiene duties into scope.

In practice the right answer is often both, matched to each load: VRF on the office floors and a chiller for a data suite or process load in the same building. What you should be wary of is a single technology imposed everywhere because it is the one a supplier prefers to sell. We work through this in depth on the VRF and VRV systems page and the commercial chillers page, and the indicative capacities and costs are laid out in full on our cost guide.

---

System capacity, efficiency and indicative cost, honestly ranged

Below is the arithmetic most commercial HVAC sites never publish: capacity, the efficiency metric that lets you compare like for like, and an indicative project-value range for each of the six system types. Treat every figure as a planning range confirmed for your building by a survey and a half-hourly-data model, never a fixed quote. Costs are driven by the cooling and heating load, the number of zones and units, plant-room and access constraints, refrigerant choice and any electrical supply upgrade, not floor area alone.

System	Typical capacity	Efficiency metric	Indicative project value	Electrification path
VRF / VRV air conditioning	22-150 kW cooling per system	SEER / SCOP	£20,000-£250,000	Reversible and heat-recovery VRF already deliver heating
Commercial chillers	100 kW-2 MW+ cooling	SEER, part-load ESEER	£80,000-£1,500,000+	Low-GWP and heat-recovery chillers; pair with heat pumps
Air handling units (AHUs)	fan 1-50 kW; 0.5-20 m³/s	SFP (specific fan power)	£15,000-£400,000	EC-fan and heat-recovery retrofit cuts fan energy
Ventilation / MVHR	fan 0.5-20 kW	heat-recovery efficiency ~90%	£8,000-£200,000	The efficiency partner that makes low-temperature heat viable
Commercial heat pumps	40-500 kW thermal	SCOP 2.8-4.0	£60,000-£600,000	The electrification step itself
Maintenance / PPM	across the installed plant	n/a	£1,500-£40,000 per year	Keeps every system at its designed efficiency

Read the efficiency column, not just the cost column. Cooling is measured on SEER and SCOP, heat pumps on the BS EN 14511 rated COP and BS EN 14825 seasonal SCOP, and air handling on specific fan power. Quoting performance to these recognised standards is what makes figures comparable across suppliers, and it is the first thing a specialist does that a box-swapper does not. Our system cost guide breaks the numbers down by technology, and every system type has its own page with the capacity, efficiency and compliance detail.

---

Refurbish or replace your AHUs — the decision competitors skip

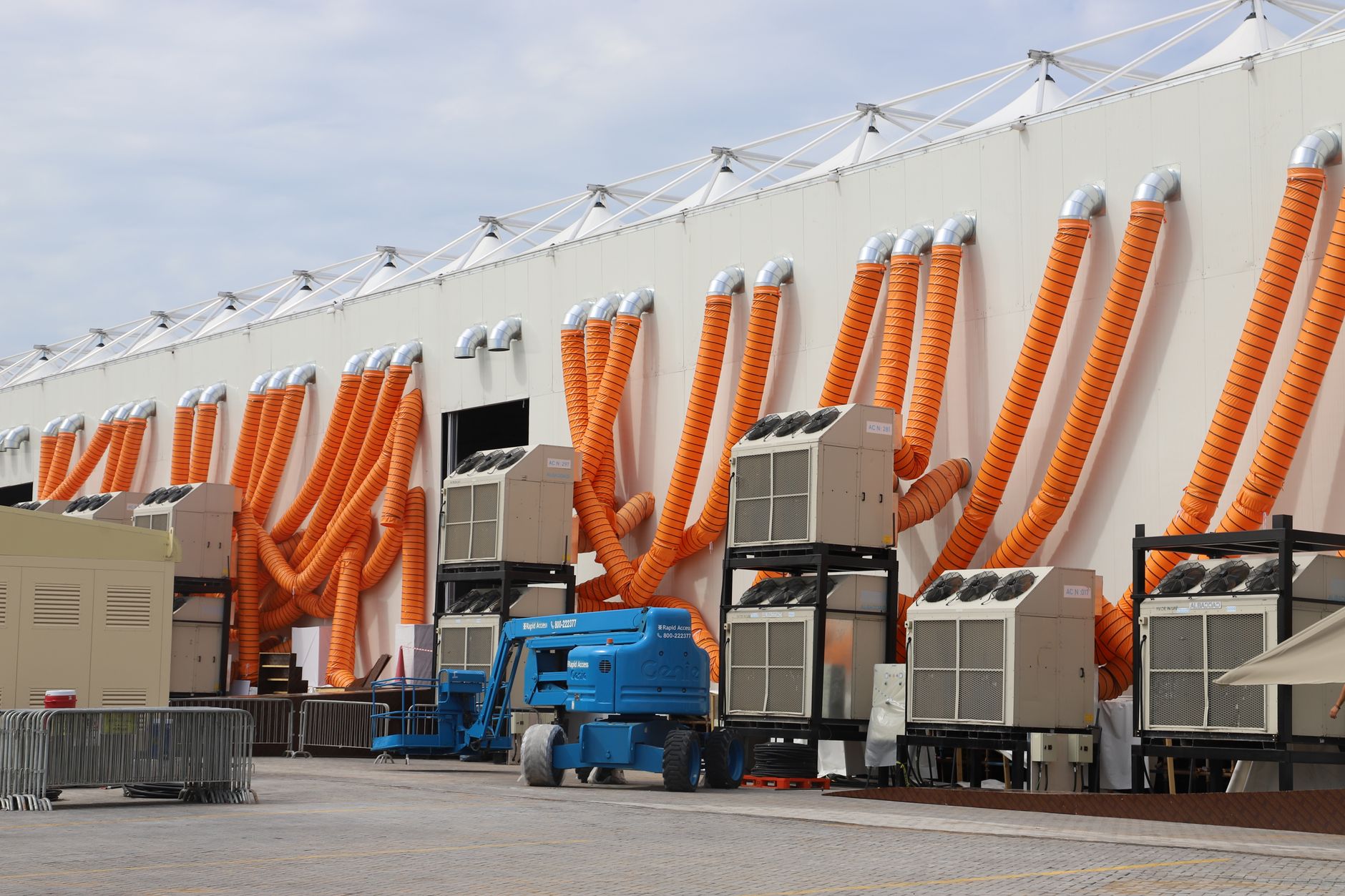

Air handling units are where the honest money is, and where the default sales answer, a full replacement, is most often wrong. Many ageing AHUs are excellent candidates for refurbishment rather than replacement. Retrofitting EC (electronically commutated) fans, replacing tired coils, adding or improving heat recovery and upgrading filtration to F7 or ePM grades can cut fan energy substantially and lift indoor air quality, for a fraction of the cost of a new unit and without the disruption of ripping out plant and ductwork.

The point is the whole-life cost comparison, not a reflex rip-out. A specific-fan-power calculation on the existing unit against a refurbished specification usually tells the story clearly. Where the casing is corroded, the layout is wrong for the space, or the building's duty has genuinely changed, replacement is the honest answer, and we will say so. But where the bones of the unit are sound, an EC-fan and heat-recovery refurbishment often delivers most of the efficiency benefit for a small share of the capital. That is a survey-led numbers decision, and we give you the whole-life cost of each option so it stays a numbers decision rather than a sales one. The full detail sits on our air handling units page, and clean, conditioned fresh air ties straight into ventilation and MVHR and indoor air quality.

---

The F-gas refrigerant transition — R410A to R32 and R454B

Refrigerant choice is now a design decision in its own right, and it is the compliance angle that defines this niche. The GB F-Gas Regulation, the retained Fluorinated Greenhouse Gas Regulation enforced by the Environment Agency, is steadily reducing the supply of high-GWP refrigerants through a quota-driven phase-down. R410A, the refrigerant in a huge installed base of VRF and chillers, has a global warming potential of around 2,088, so it is squarely in the firing line: not banned outright for existing larger systems, but squeezed, meaning reclaimed and virgin gas will get scarcer and more expensive over time.

The direction of travel is toward lower-GWP refrigerants: R32 at a GWP of 675, R454B at around 466, and natural refrigerants such as R290 propane at a GWP of 3, which sits outside the F-gas quota entirely but brings DSEAR flammable-refrigerant siting requirements with it. One concrete milestone already in GB law: from 1 January 2025, new single-split systems under 3 kg charge could not use refrigerant of GWP 750 or more, a clear signpost of where larger equipment is heading. The direction of travel is a steadily steeper phase-down, so confirm the current schedule and any tightened steps on gov.uk before making a long-term specification call.

The sensible plan for existing R410A plant is not a panic replacement. Keep the system maintained and leak-tight, which also keeps you compliant, plan its replacement around its natural end of life, and specify low-GWP refrigerant when you renew. On leak checks, the duty is set by the refrigerant charge measured in tonnes of CO2 equivalent: at least annually at 5 tonnes, six-monthly at 50 tonnes, and quarterly at 500 tonnes, with automatic leak detection able to reduce some frequencies. Around 2.4 kg of R410A crosses the 5-tonne line, so most commercial VRF and chiller systems are in scope. The work must be carried out by an F-gas certified company, REFCOM, the Quidos F-Gas Register or Bureau Veritas, renewed every three years, and by certified engineers, with refrigerant records kept. You can read the F-gas company certification requirements on GOV.UK, and REFCOM, a subsidiary of the BESA Group, publishes guidance on F-gas company registration. Handling all of this as part of a PPM contract is the compliance most building owners cannot self-manage, and it is why leak checks sit at the core of a maintenance regime.

---

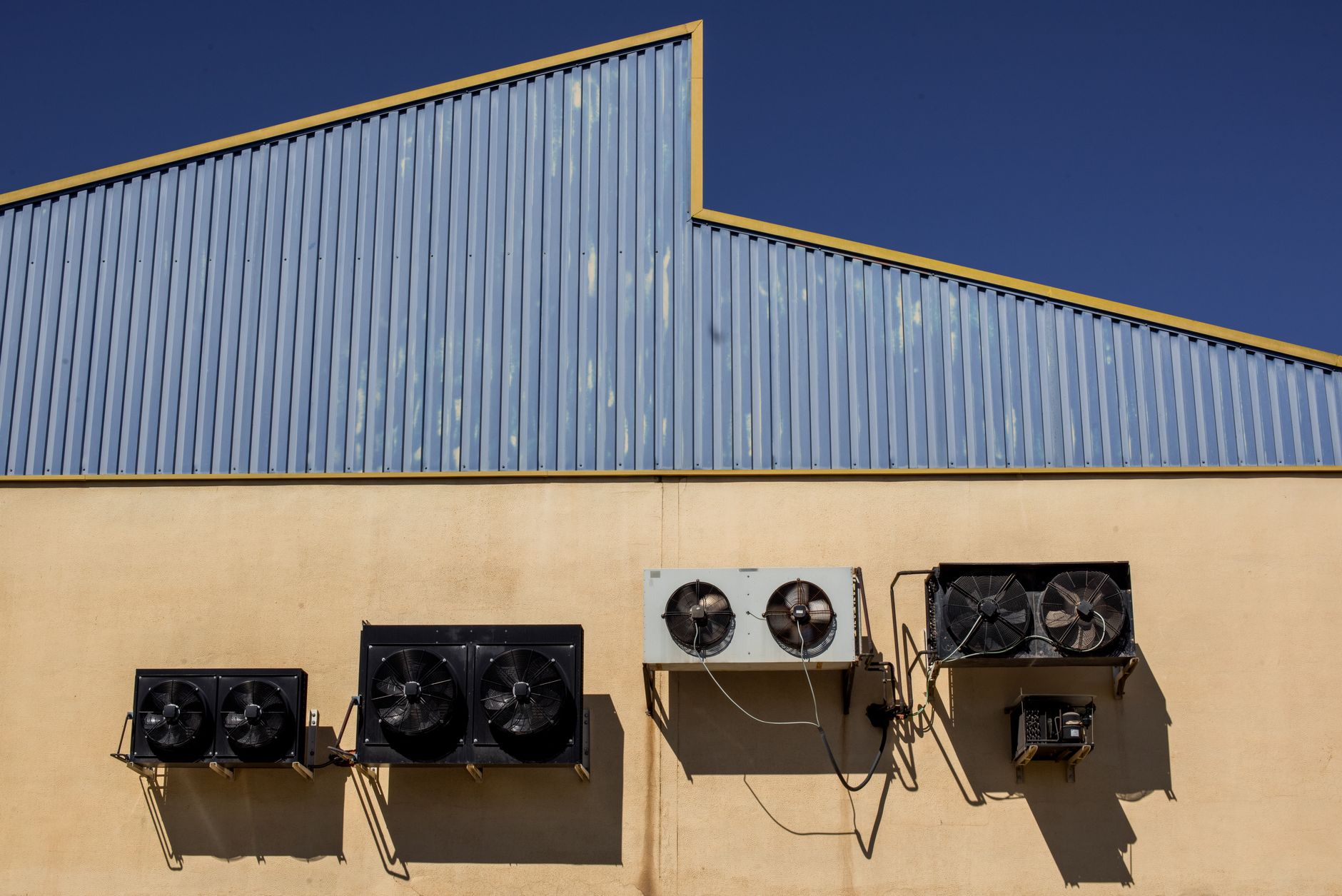

Will a heat pump cost more to run than gas — the honest SCOP maths

This is the most-dodged question in commercial HVAC, so here is the honest arithmetic rather than the sales pitch, and it is a case of taking our own advice: we model it from your real data instead of promising a headline saving. The whole electrification economics sit on the electricity-to-gas price ratio. Electricity is currently around four times the unit price of gas, roughly 24 to 25p per kWh against 6 to 7p per kWh on 2026 Ofgem price caps. That ratio is the fulcrum: electrifying heat only pays where the heat pump's seasonal efficiency is high enough to close that gap.

Work it through. A commercial heat pump running at an SCOP of 3.5 delivers a unit of useful heat for roughly a third of its electricity input, so at 24 to 25p per kWh of electricity that is in the region of 7p per kWh of delivered heat, against a good gas boiler at around 8p per kWh of heat once boiler efficiency is accounted for. On those numbers the heat pump is roughly level to a little cheaper today. But at the median field SCOP seen in the Electrification of Heat trial, around 2.8 to 3.1, the same sum can come out marginally more expensive. That is exactly why the honest line is that it depends on the SCOP and the tariff, and why we model it rather than assert a fixed percentage saving. We will not quote you a fabricated annual figure. The biggest levers we design for are a low flow temperature, typically 45 to 55°C, upgraded emitters where needed, and ventilation heat recovery, all of which lift the achieved SCOP.

Two forces are shifting the balance over the life of the plant. The Climate Change Levy adds cost to both fuels, with the main rate from 1 April 2026 sitting at 0.801p per kWh on electricity and gas (confirm the current value on gov.uk, as levy rates change), and a Climate Change Agreement can cut that by 92 per cent on electricity and 89 per cent on gas for eligible energy-intensive sectors. Grid decarbonisation also improves the carbon case for electrified heat year on year. Where the running-cost maths is genuinely marginal today, the right first move is often efficiency, better controls, EC fans and heat recovery, before electrification. For premises weighing up heat pumps as the electrification step, our sister site covers commercial heat pumps for business premises in depth, and we set out the running-cost detail on our commercial heat pumps page and cost guide.

---

MEES and your EPC — the lettability driver behind HVAC upgrades

For any commercial landlord or managing agent, the Minimum Energy Efficiency Standard has turned HVAC efficiency into a lettability question. Two points to separate carefully: what is law now, and what is proposed.

What is law now: it has been unlawful to continue letting commercial space below EPC E since 1 April 2023, not merely for new lets from 2018 but for continuing tenancies. Penalties are tiered on rateable value up to £150,000, alongside public naming. If a building is below E, that is a live legal exposure, and because heating, cooling and ventilation dominate a commercial building's modelled energy use, HVAC is usually the most effective route to lift the rating.

What is proposed, and not yet settled law: the government's interim response of 18 June 2026 proposes, subject to secondary legislation, that privately rented non-domestic buildings over 1,000 square metres reach EPC B by 2031. The previously floated interim EPC C milestone for 2027 was dropped, and buildings under 1,000 square metres stay on E with no new deadline. Anything you read asserting "EPC B by 2030" or a firm 2027 commercial milestone is stale, and because this is a proposal delivered through secondary legislation, confirm the current position on gov.uk before treating any date as fixed. Either way, efficient VRF and chillers, heat recovery on ventilation, better controls and electrified low-carbon heat all lift the modelled performance that sets the EPC, so a well-planned HVAC upgrade protects the lettability of a larger building. Assessment intent, the EPC survey itself, sits with specialist assessors; our role is the HVAC that moves the number, and we set out the funding for it below and on our grants and funding page.

---

How commercial HVAC is actually funded — no commercial Boiler Upgrade Scheme

The honest headline first: there is no commercial equivalent of the £7,500 domestic Boiler Upgrade Scheme. Facilities managers ask about it constantly, and we would rather say plainly that it does not apply to commercial buildings than imply a grant that does not exist. Commercial HVAC is funded chiefly through the tax system and a handful of targeted routes.

The primary route is capital allowances. Full expensing gives companies paying UK corporation tax a 100 per cent first-year deduction on qualifying new plant and machinery, with no upper cap, and it was made permanent from April 2026 (confirm the current position on gov.uk). For a company at the 25 per cent corporation-tax rate that is worth up to about 25p of tax saved per £1 spent. Unincorporated businesses and items outside full expensing are covered by the Annual Investment Allowance, up to £1m at 100 per cent, and from 1 January 2026 a new 40 per cent first-year allowance extends first-year relief further, including to unincorporated businesses and leased assets (again, confirm the current rate on gov.uk, and note the main writing-down allowance was cut to 14 per cent from April 2026). You can read the capital allowances and full expensing guidance on GOV.UK.

Two further levers are worth knowing about honestly. The Industrial Energy Transformation Fund historically offered 30 to 50 per cent grants for industrial fuel-switching and efficiency projects, but following the 2025 Spending Review it is winding down, with no further extension planned and the second Phase 3 window not taking place; committed projects are funded to completion. Treat it as "was available for eligible energy-intensive industrial and data-centre sites, confirm current status on gov.uk" rather than an open route, and note it never covered ordinary comfort HVAC. Climate Change Levy relief through a Climate Change Agreement is not a grant but a running-cost lever: efficient HVAC lowers energy use and therefore levy exposure, and eligible sectors can cut the levy sharply. Finally, the 0 per cent VAT on qualifying energy-saving materials, in place until 31 March 2027 before reverting to 5 per cent, is targeted at residential accommodation and qualifying charitable buildings, so it does not blanket-cover standard commercial offices; it is relevant only to any residential or charity element. The full, dated picture is on our grants and funding page, with the running-cost detail on the cost guide.

---

An illustrative commercial VRF refrigerant-transition project

The following is an illustrative, modelled scenario, representative of a typical commercial VRF refrigerant-transition, not a named client or a delivered track record. The figures are a composite built from the cost and running-cost ranges above, presented so you can see how the pieces fit together rather than as a guaranteed outcome.

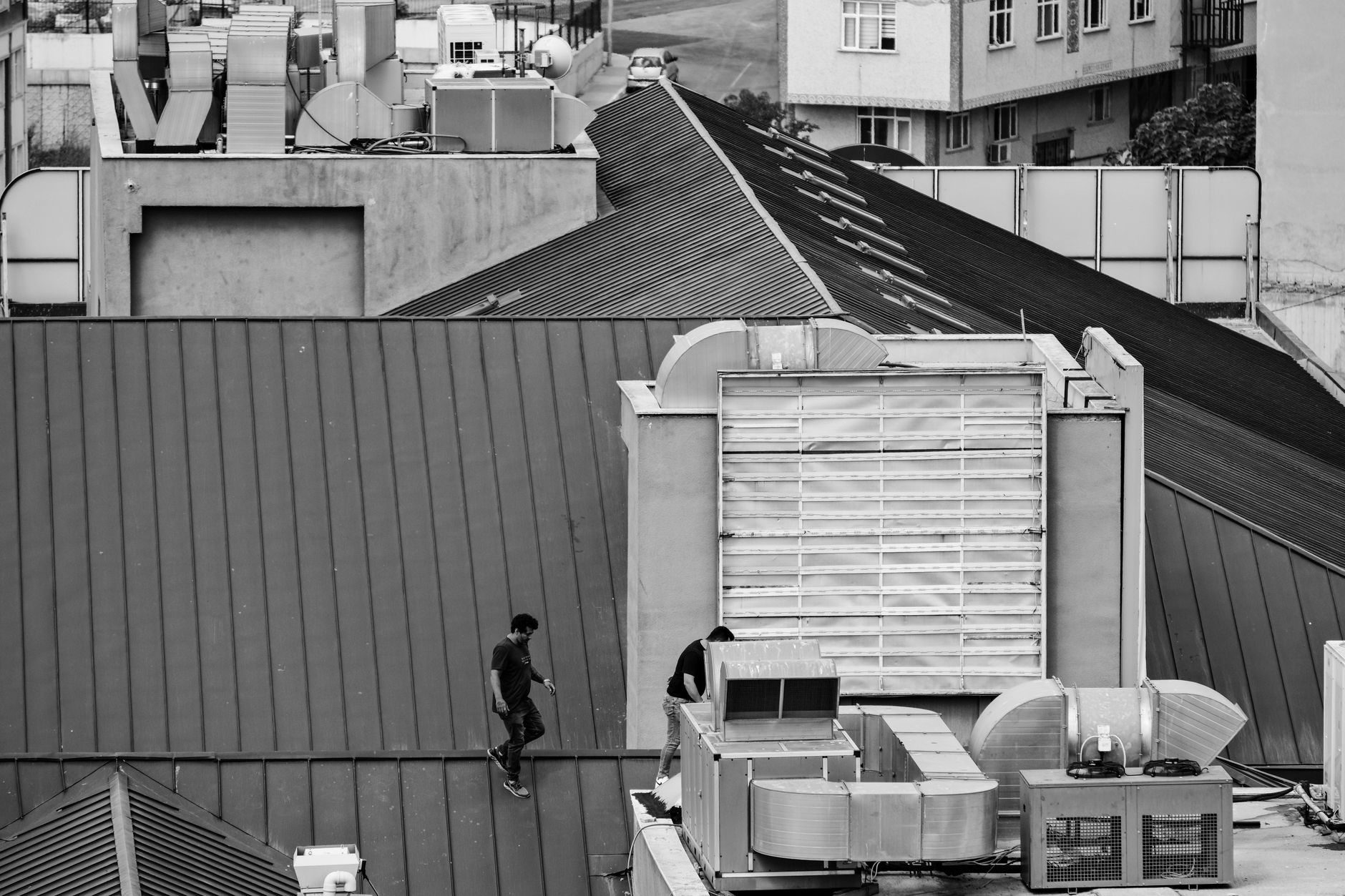

A managing agent ran a 5,500 square-metre, six-floor, multi-let city-centre office on ageing R410A VRF. The plant was out of warranty, leaking and increasingly costly to re-gas as R410A supply tightened, tenants complained of hot-and-cold zones, and the agent needed to protect the building's lettability against the tightening MEES standard. The modelled solution was three heat-recovery VRF systems on R32, around 130 kW of total cooling across 48 indoor units, with EC-fan indoor units, new controls and BMS integration, staged floor by floor to keep the building let and occupied throughout.

The modelled outcome removed the R410A stranding risk and the recurring leak and re-gas cost, cut the zone complaints, and lifted the building's modelled energy performance ahead of the proposed EPC B 2031 standard, with full expensing delivering a 100 per cent first-year capital deduction. The point of the scenario is that it names the real building type, the real refrigerant transition, the real compliance driver and the real funding route, without inventing a client, a testimonial or a fabricated saving. Our approach to every project follows the same shape, set out under how it works and across the case studies.

---

What refrigerants new commercial HVAC should use

If you are specifying new plant, specify low-GWP refrigerant so the equipment is not stranded by the F-gas phase-down. For most new VRF and direct-expansion systems that means R32 at a GWP of 675 or R454B at around 466, both far below R410A's 2,088. Chillers increasingly use R32, R454B or R1234ze, and for smaller duties the natural refrigerant R290 propane at a GWP of 3, which sits outside the F-gas quota but carries DSEAR and siting requirements that must be designed in. All refrigerant work is carried out by F-gas certified engineers, and specifying low-GWP now is what avoids a future gas-supply cost and compliance headache. The refrigerant detail runs through our VRF and VRV page and chillers page.

---

Indoor air quality and ventilation — delivered by your HVAC

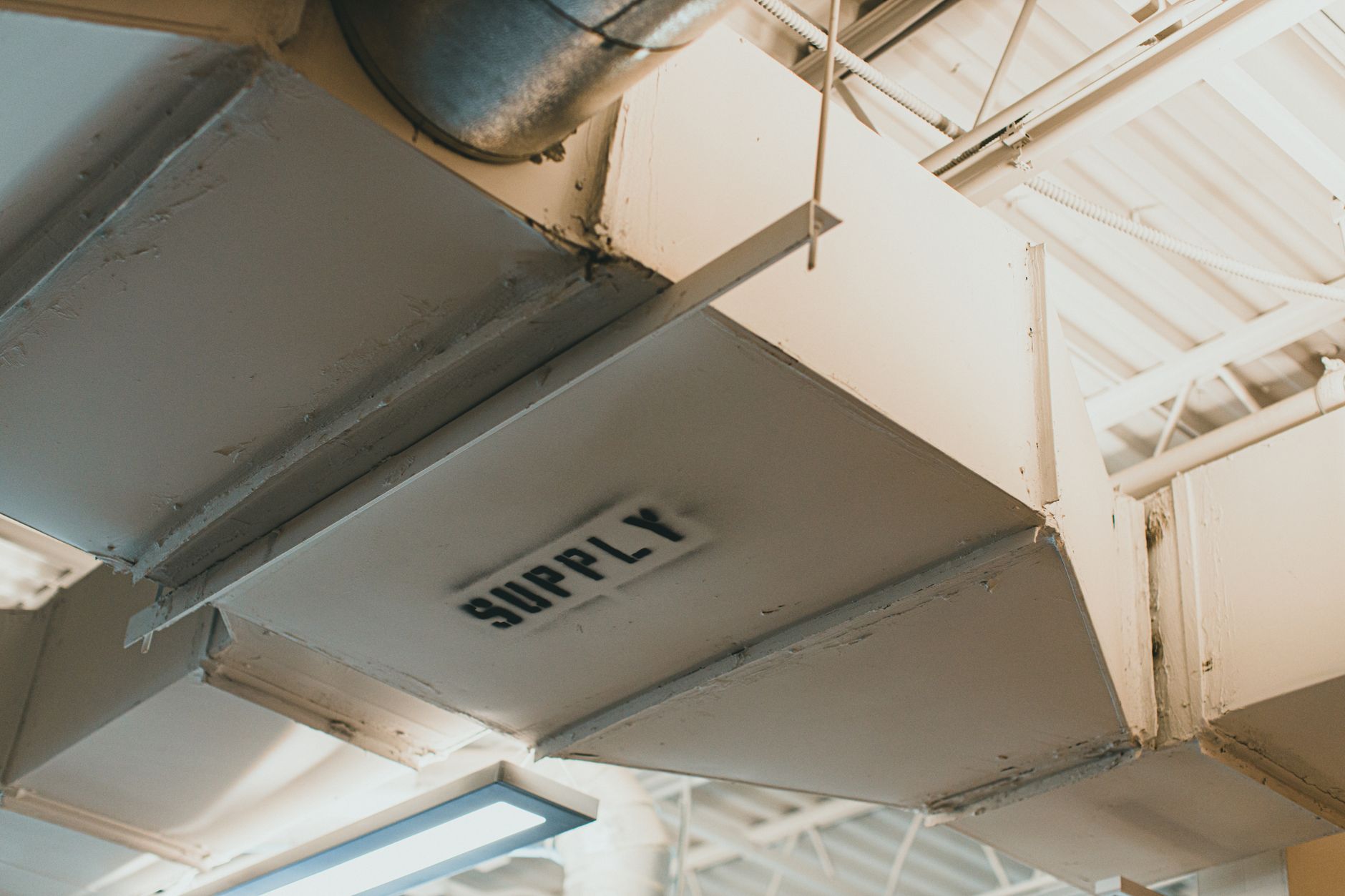

Indoor air quality is an HVAC outcome, not a separate product bolted on afterwards. Ventilation and air handling are what deliver clean, correctly-conditioned fresh air: AHUs filter incoming air to F7 or ePM grades, mechanical ventilation with heat recovery brings in fresh air while recovering up to around 90 per cent of the exhaust heat, and demand-controlled ventilation using CO2 and occupancy sensing supplies fresh air only where and when it is needed. Good indoor air quality supports productivity, wellbeing and infection control, and the design trick is to deliver it without a heating and cooling penalty, which is exactly what heat recovery and demand control achieve. It is also the efficiency partner to heat pumps: low ventilation heat loss is what makes low-temperature heating viable. We design ventilation for air quality and energy together, never one at the expense of the other, on our ventilation and MVHR page.

---

Planned maintenance and PPM — the compliance and efficiency backbone

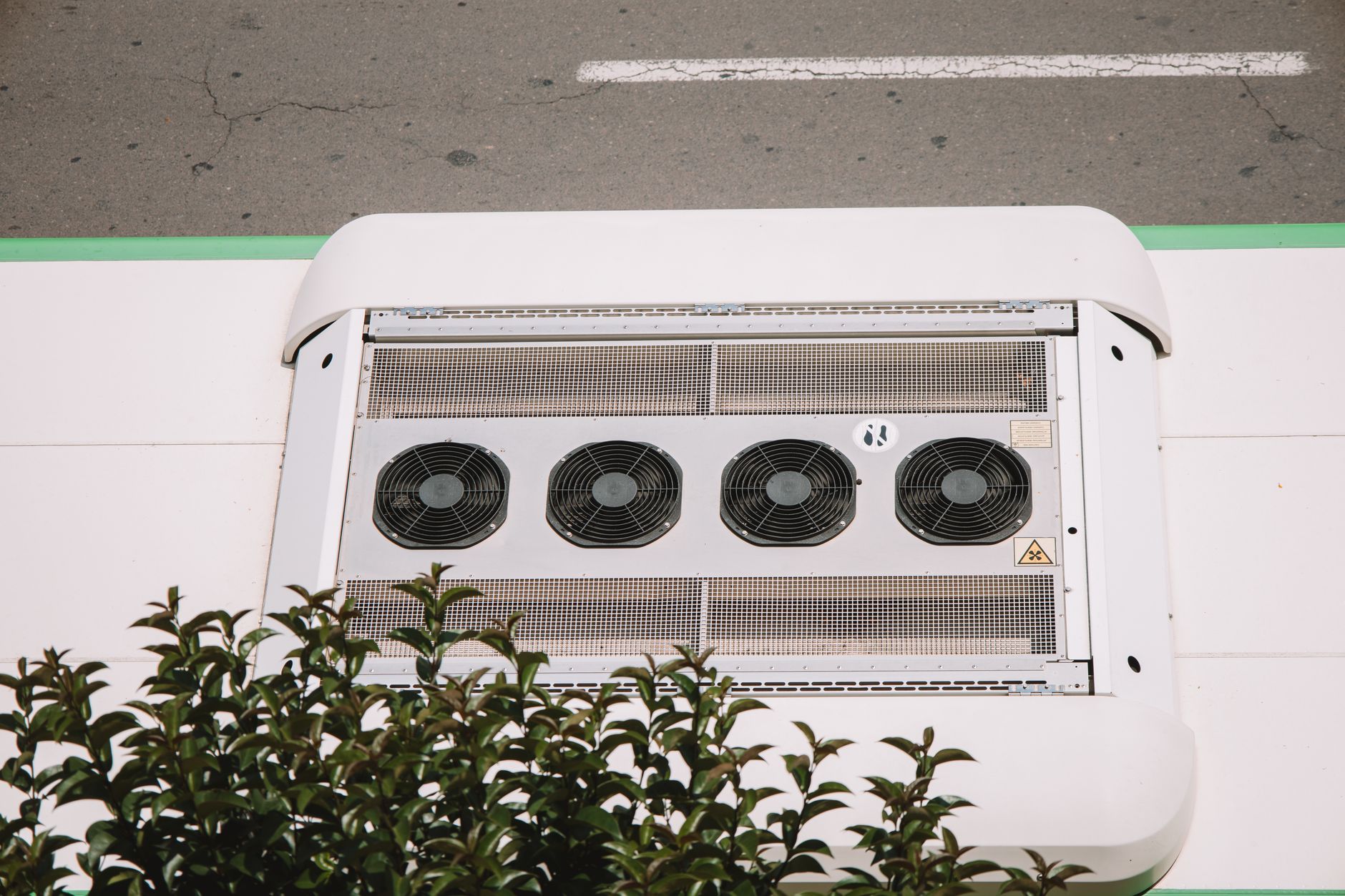

A planned preventative maintenance contract does three things at once, and it is almost always cheaper than the reactive call-outs it prevents. First, it handles your statutory F-gas leak checks and refrigerant records at the frequency your charge demands, the compliance the Environment Agency enforces and that most owners cannot self-manage. Second, it catches faults early through scheduled servicing and remote BMS monitoring, before they become expensive emergency call-outs on an ageing chiller or AHU. Third, it protects manufacturer warranties, many of which require documented maintenance, and holds the plant at its designed efficiency so running cost does not drift upward year on year.

Contracts usually run quarterly or six-monthly to match F-gas and warranty duties, and they sit inside a wider regime that can include TR19 ductwork cleaning for fire safety and air quality, ACOP L8 water hygiene on wet systems, and electrical checks. We price PPM against your actual plant and its F-gas leak-check frequency, not a generic per-unit rate, on our HVAC maintenance and PPM page. Standards bodies worth knowing are CIBSE for design guidance and BESA for SFG20 maintenance schedules.

---

Commercial HVAC across the UK

The engineering is the same in every postcode, but the building stock is not. A city-centre multi-let office running VRF and AHUs under MEES pressure, a hotel with VRF, heat pumps and MVHR on its leisure spaces, a data suite with a flat 24/7 cooling load on close-control plant, a hospital or care setting with year-round, air-quality-critical demand, and a light-industrial warehouse needing destratification and ventilation all call for a different design, even though the load-profile principles hold throughout. We plan HVAC around the local commercial-property and industrial-estate stock and the net-zero context of each area. Find your location, and the stock-specific detail for it, on our areas we cover directory. Wherever the building is, the first step is the same: survey the plant, model the loads from real data, and buy efficiency before capacity. Common questions are answered in full on our commercial HVAC FAQs, with the numbers on the cost guide and the reliefs on the grants and funding page.

---
